The success of polymer resin-based purification and separation processes depends not only on the quality of the resin itself but also critically on the selection of supporting equipment and the standards of engineering excellence. At Hairun Resin, we recognize that every component, from distribution internals to control systems, must work in harmony to deliver consistent, efficient, and safe operation over the long term.
Core Equipment for Purification and Separation
A complete polymer resin separation system comprises multiple subsystems, each serving a distinct function in the overall process:
Adsorption Columns / Resin Vessels
The heart of any resin separation system. These pressure vessels house the resin bed and must be designed to ensure uniform flow distribution, adequate pressure rating, and compatibility with the process media. Vessel design directly impacts resin utilization, separation efficiency, and operational lifespan.
Feed System
Responsible for delivering the feed stream to the resin bed at controlled flow rates and pressures. Precision pumps and flow control components ensure stable operation and prevent resin damage from hydraulic shock or flow surges.
Pretreatment System
Protects the resin from fouling and extends its operational life by removing suspended solids, particulates, and interfering substances before they reach the adsorption column. Effective pretreatment reduces pressure drops, minimizes regeneration frequency, and maintains separation performance.
Desorption / Regeneration System
Enables the recovery of adsorbed target compounds and the restoration of resin capacity. Proper design of regeneration systems—including reagent distribution, contact time, and flow configuration—is essential for achieving complete regeneration and maintaining long-term resin performance.
Control System
The operational brain of the installation. Modern systems rely on PLC-based automation to execute precise sequencing of valve positions, flow rates, and regeneration cycles. Intuitive operator interfaces and comprehensive alarm logic are essential for safe, reproducible operation.
Cleaning System
Provides in-place cleaning (CIP) capabilities to remove accumulated foulants, microbial growth, or residual process materials. Effective cleaning protocols are critical for maintaining product purity and preventing cross-contamination between batches.
Collection and Storage System
Collects eluate fractions or purified product streams and directs them to appropriate storage or downstream processing. Fractionation control ensures that target fractions are captured with minimal dilution or overlap.
Instrumentation and Monitoring
Sensors and analyzers that provide real-time data on flow, pressure, temperature, pH, conductivity, and product concentration. Continuous monitoring enables process optimization and early detection of abnormal conditions.
Piping and Valves
The circulatory system of the installation. All piping and valve materials must be compatible with process fluids and regeneration chemicals. Proper routing, minimal dead legs, and reliable valve performance are essential to prevent contamination, leakage, and unplanned downtime.
Choosing equipment based on initial cost rather than quality and suitability creates a cascade of problems that ultimately compromise system performance, safety, and economics:
Flawed vessel design causes channeling and leaks;
Unstable feed systems disrupt process consistency;
Deficient controls increase human error and risk;
Poor regeneration reduces resin effectiveness;
Piping and valve issues invite contamination;
Inadequate integration undermines reliability, safety, and overall cost-efficiency.
Hairun’s equipment and system integration services are built on deep expertise in resin application technology, process engineering, and modular control systems. The result is a portfolio of solutions that eliminate the weaknesses common to poorly designed installations.
Heavy-Duty Construction Quality
Precision Resin Vessel Engineering: Hairun’s column designs incorporate optimized internal distributor geometries that ensure uniform fluid distribution across the entire resin bed. Computational fluid dynamics modeling and extensive testing validate distributor performance before fabrication. This attention to design detail maximizes resin utilization, prevents channeling, and delivers consistent separation results batch after batch.

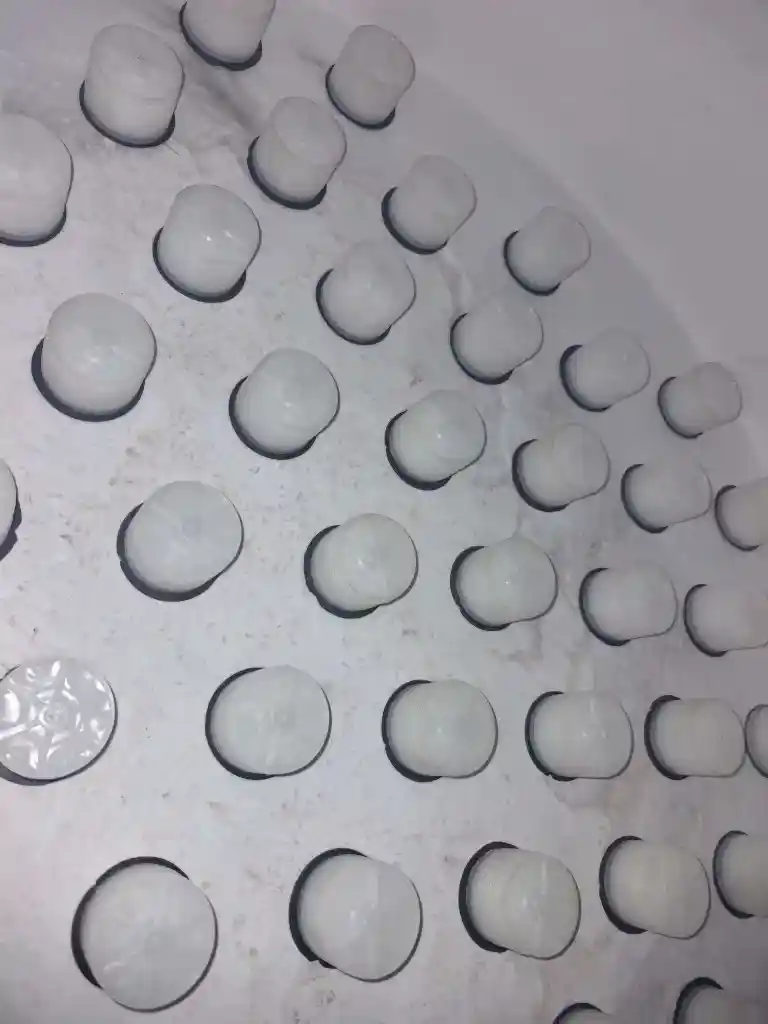

Custom-Designed Internals: Each system’s internal distributors are purpose-engineered based on specific process parameters. We supervise manufacturing throughout the process to ensure that every unit meets our stringent quality requirements. This ensures uniform fluid distribution across the resin bed, maximizing utilization and separation efficiency.
Double Gasket + Double Nut Sealing: On all critical connections, we implement dual sealing—double gaskets combined with double nut fasteners. This redundant sealing approach eliminates leakage risk, protects against vibration loosening, and ensures long-term integrity even under demanding conditions.
PTFE Key Components: Critical fittings and seals are manufactured from PTFE (polytetrafluoroethylene), renowned for its exceptional chemical resistance, thermal stability, and sealing performance. These components provide reliable operation across the full range of process and regeneration conditions.

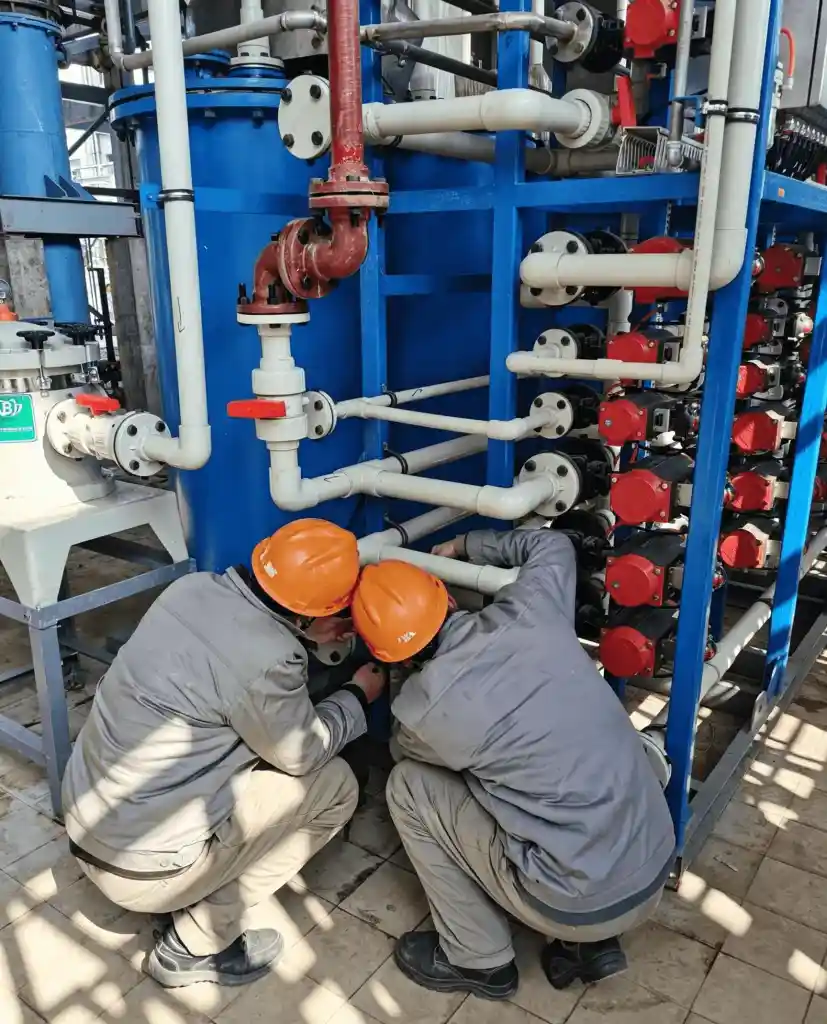

Premium PPH Piping: Our piping systems are constructed from high-quality PPH (polypropylene homopolymer) using imported raw materials. This ensures consistent mechanical strength, excellent corrosion resistance, and a long service life even in aggressive chemical environments.
Foolproof Operating System
Complex processes should not require highly specialized operators. Hairun Resin systems feature operating interfaces designed for maximum clarity and ease of use:

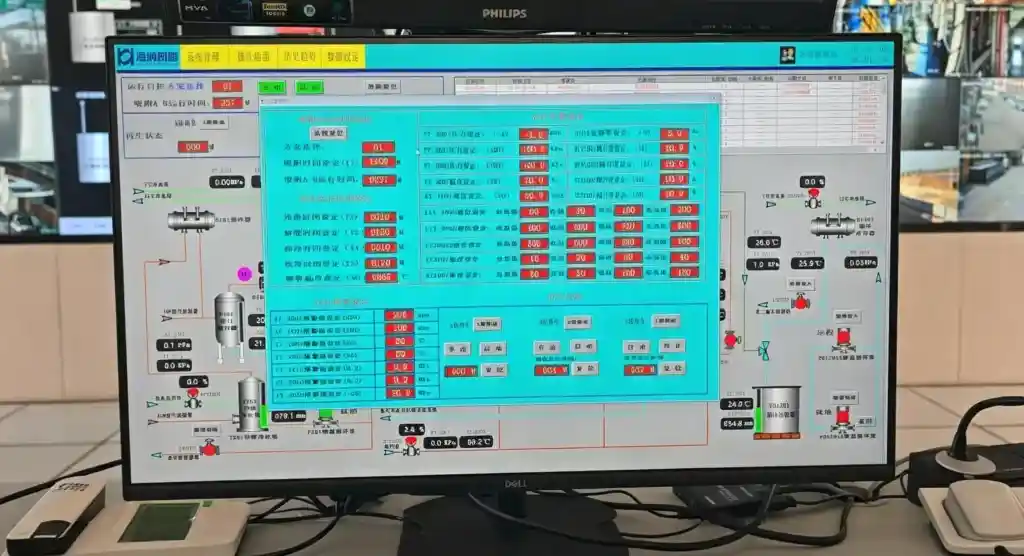

Intuitive User Interface: The control system presents all critical information and operating controls in a logical, immediately comprehensible format. Operators can execute standard procedures without extensive training or constant reference to manuals.
Fully Automated PLC Control: All process sequences—including feed, adsorption, regeneration, and cleaning cycles—are fully automated through PLC programming. This eliminates manual operating errors, ensures repeatable results, and allows operation around the clock with minimal supervision.
Online Monitoring and Alarm Logic: Comprehensive sensors feed real-time data to the control system, which continuously evaluates process parameters against safe operating limits. Integrated alarm and protection logic responds automatically to abnormal conditions, safeguarding both equipment and personnel.
Modular and Skid-Mounted Design
Hairun employs modular architecture using standardized components throughout our equipment lineup. For smaller-scale applications, compact skid-mounted units arrive pre-tested and ready for rapid installation. Larger installations benefit from modular assembly that enables flexible system configuration and straightforward expansion. Standardization reduces manufacturing costs while shortening field installation timelines, delivering significant value to our clients.
Complete Process Development to Delivery
From initial theoretical analysis through experimental validation, pilot-scale demonstration, detailed design, and EPC execution, Hairun provides a seamless development pathway. Our process engineering teams combine resin expertise with equipment engineering capabilities to ensure every system we deliver is technically sound, economically optimized, and operationally stable. For special applications, we can optimize resin formulations and operating procedures based on laboratory results, then translate these findings into precisely sized automated integrated systems.
Conclusion
The equipment and engineering behind a polymer resin separation system are not secondary considerations—they are decisive factors in determining whether a system delivers on its promise over years of operation. Poor-quality components and inadequate system integration create a cascade of problems that erode performance, increase costs, and ultimately undermine the value of even the best resin.
Hairun Resin Co., Ltd. combines deep specialty resin expertise with comprehensive equipment engineering capabilities to deliver integrated solutions that perform. Our systematic approach—from process development through design, fabrication, and installation—ensures each system meets our standards for technical excellence and operational reliability.
